MAGENTIC_REGISTER

Published:2009/7/12 22:10:00 Author:May | From:SeekIC

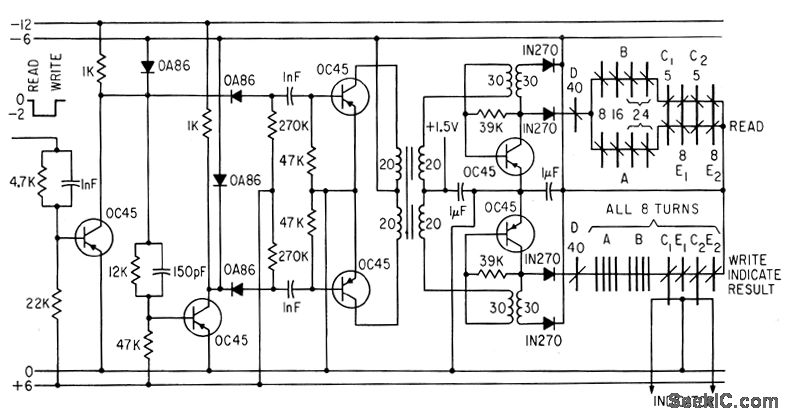

Basis of storage is magetization time.Four ferrite cores will store one deciaml digit under control of one clock pulse.-A.A.Jaecklin.Storing Complete Decimal Digits with One Clock Pulse,Electronice,34:11,p50-53
