M54543L loading motor driver IC diagram

Published:2011/8/14 22:17:00 Author:Ecco | Keyword: loading motor, driver IC | From:SeekIC

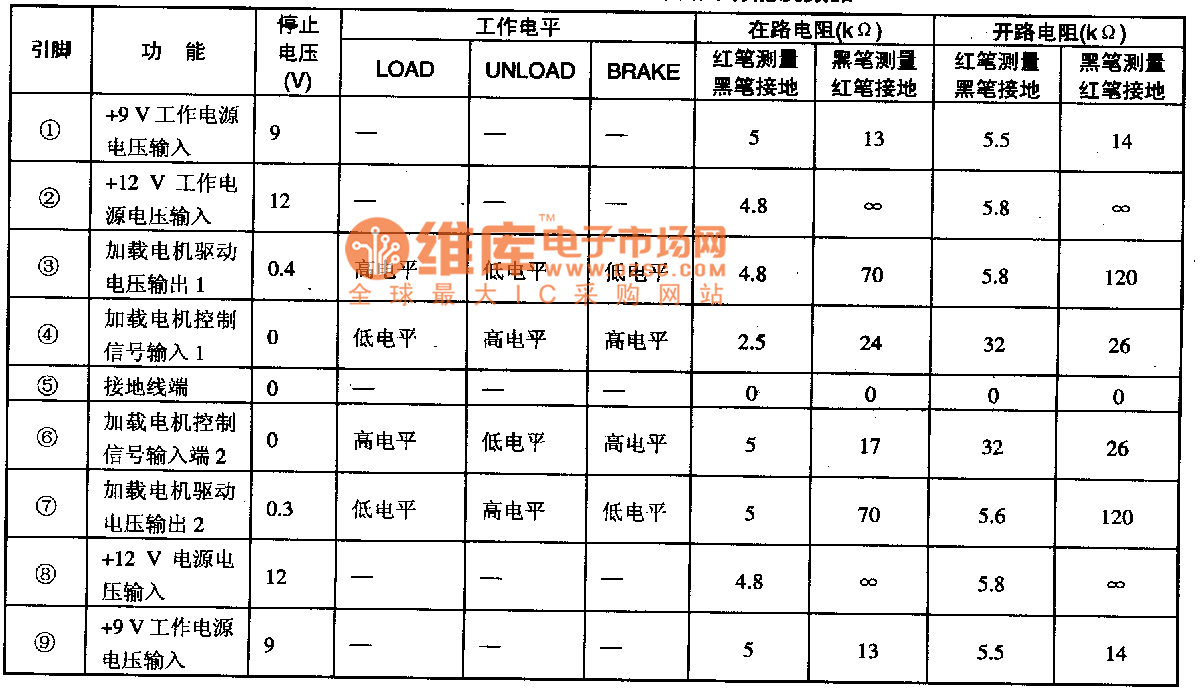

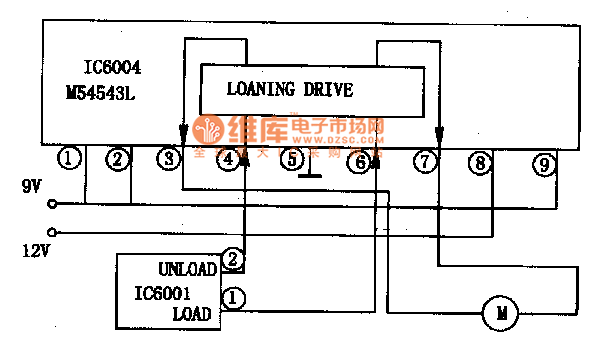

M54543L is the loading motor driver IC manufactured by Japan's Mitsubishi, and it is widely used in various camcorders. M54543L IC uses 9-pin single package, and the integrated circuit pin functions and data are listed in Table 1-1, the typical application circuit of manifold is shown in Figure 1.
