Low_pass_active_filter

Published:2009/7/24 13:44:00 Author:Jessie | From:SeekIC

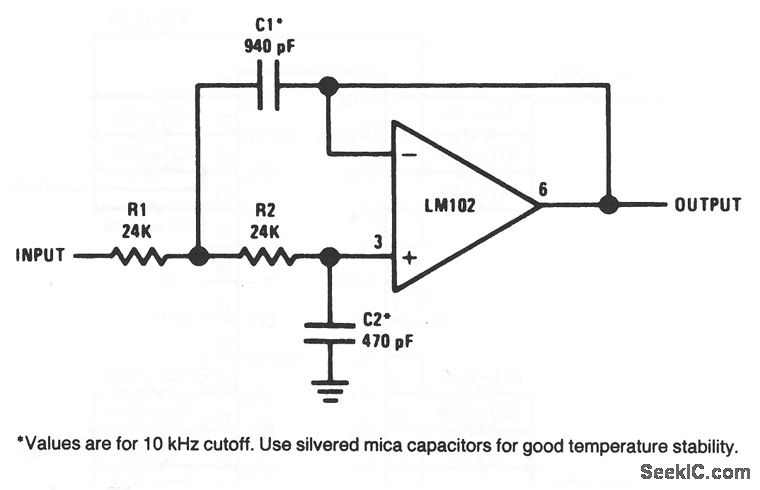

This circuit uses an LM102 connected to form a basic low-pass filter (input capacitors in parallel and input resistors in series). The values are for a 10-kHz cutoff. Other frequencies can be selected with different values. National Semiconductor, Linear Applications Handbook, 1991, p. 98.
