Load Power Adjustor Eight

Published:2011/5/22 0:40:00 Author:Michel | Keyword: Load Power Adjustor, Eight | From:SeekIC

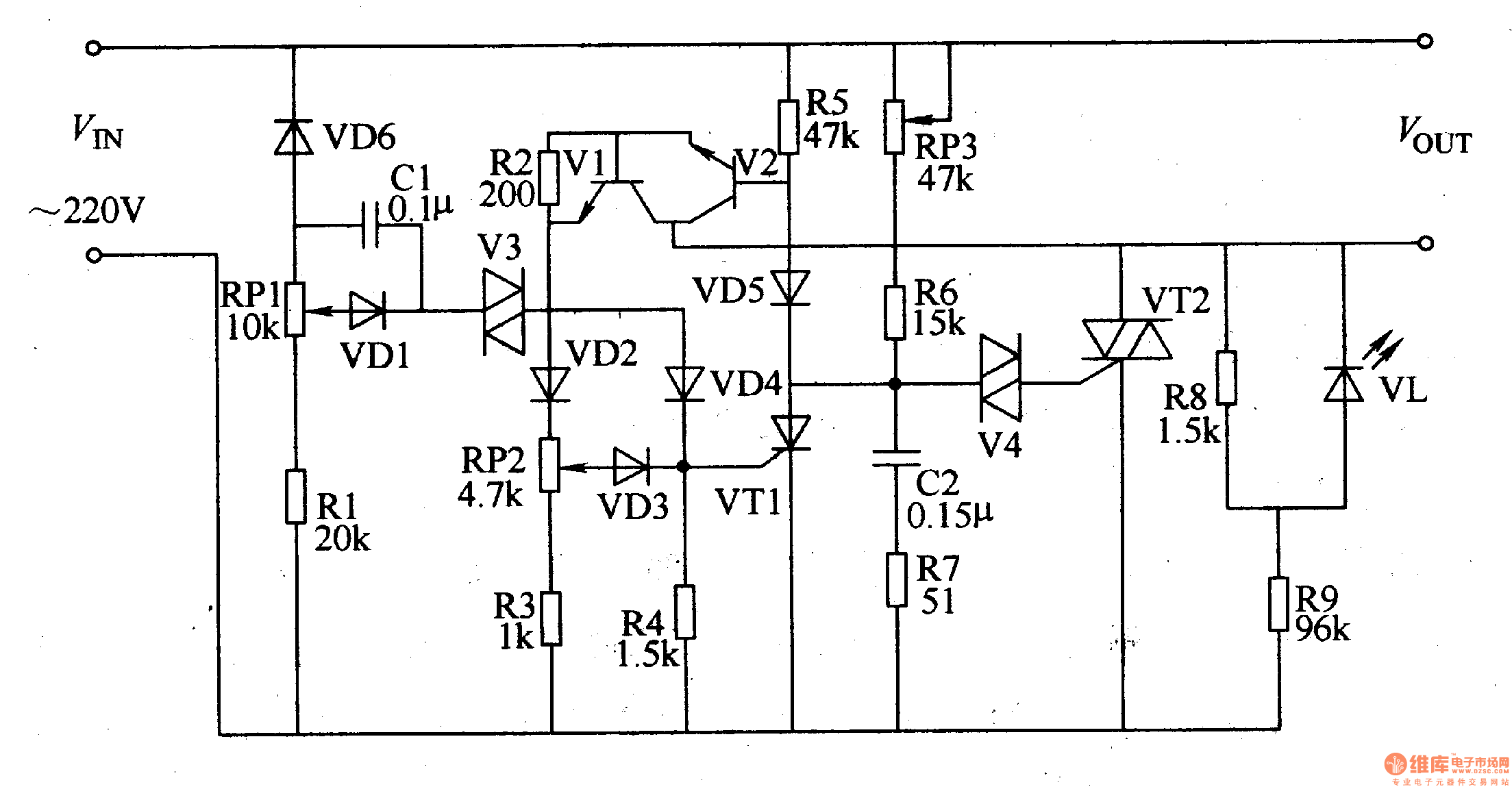

The load power adjustor introduced in the example has the functions of stepless voltage regulation,overload and overvoltage protection which can be used to adjust light,speed and temperature etc. Circuit's Work PrincipleThe bearing power adjustor consists of voltage regulation circuit,overload test circuit and protection control circuit and it is showed as the picture 5-61.The voltage regulation circuit is composed of potentiometer,RP3,resistor,R6 and R7,capacitor,C2,bidirectional trigger diode,V4 and thyristor,VT2.
