LOW_POWER_METRONOME

Published:2009/7/10 21:16:00 Author:May | From:SeekIC

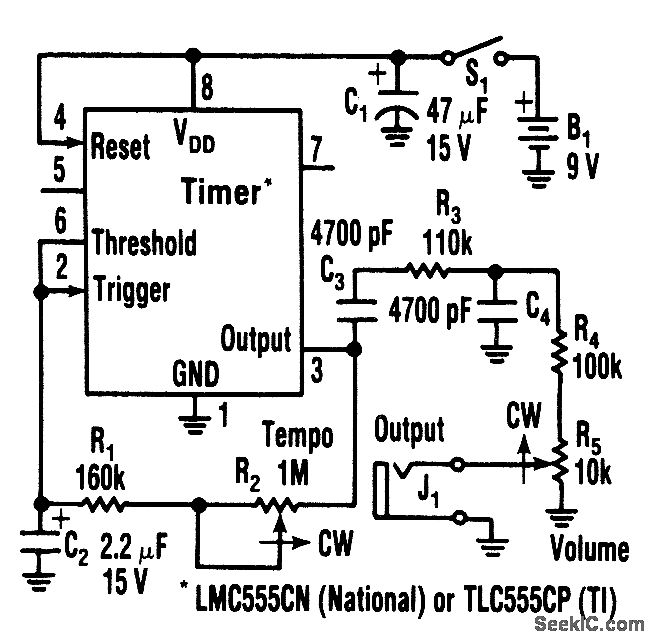

Using only 0.25 mA,this metronome is idealfor battery operation.The tempo range is 34 to 246beats per mtnute.Use a CMOS timer, such as an LM555 CN Or TLC55CP.
