LOW_NOISE_400_MC_CONVERTER

Published:2009/7/13 6:19:00 Author:May | From:SeekIC

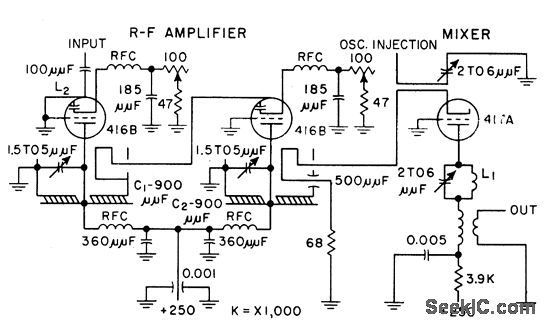

Voltage gain is 36 db, bandwidth 4 Mc, and noise figure only 2.5 db. Uses grounded-grid r-f and mixer stages. Applications include meteor, aurora, and forward scatter propagation studies.-L. F. Garrett, Low Noise Converter for IGY Propagation Study,ELectronics,31;5,p52-54.
