LOW_HYSTERESIS_TRIGGER

Published:2009/7/23 21:26:00 Author:Jessie | From:SeekIC

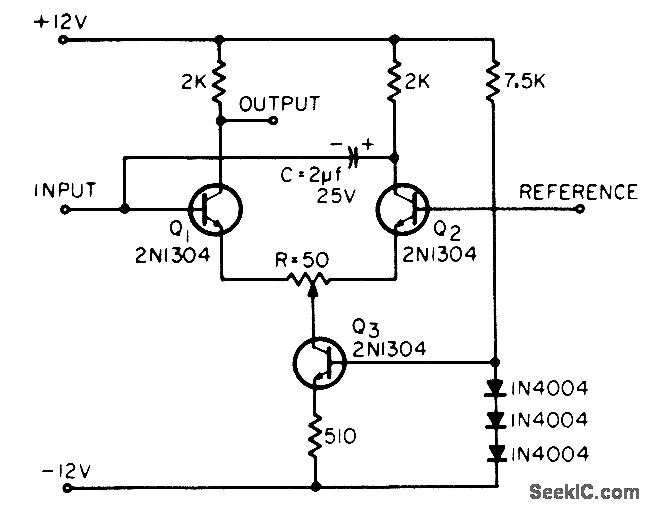

Differential-amplifier pair, with constant-current source Q3 replacing emitter resistor, serves as level detector with low hysteresis. Good up to 60 kc.-D. B. Campbell, Low-Hysteresis Trigger Circuits, EEE, 13:1, p 76.
