LOW_FREQUENCY_MULTIVIBRATOR

Published:2009/7/7 6:35:00 Author:May | From:SeekIC

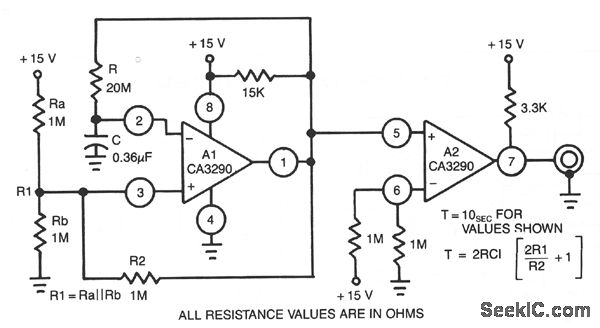

This circuit uses half the CA3290 BiMOS dual voltage comparator as conventional multivibrator. The second half maintains frequency against effects of output loading. Large values of timing resistor, R1, assure long time delays with low-leakage capacitors.
