LOW_DRIFT_SAMPLE_AND_HOLD

Published:2009/6/30 3:22:00 Author:May | From:SeekIC

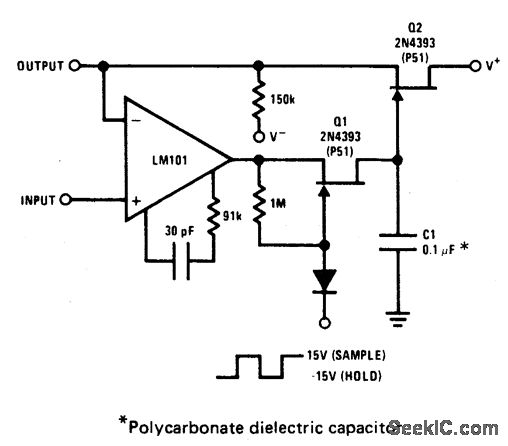

TheJFETs, Q1 and Q2, provide complete buffering to C1, the sample and hold capacitor.During sample, Q1 is turned on and provides a path, rds(on), for charging C1. During hold, Q1 is turned off, thus leaving Q1 ID(off) (＜100 pA) and Q2 IGSS (＜ 100 pA) as the only discharge paths. Q2 serves a buffering function so feedback to the LM101 and output current are supplied from its source.
