LOW_CURRENT_VOLTAGE_TRIPLER

Published:2009/7/11 5:08:00 Author:May | From:SeekIC

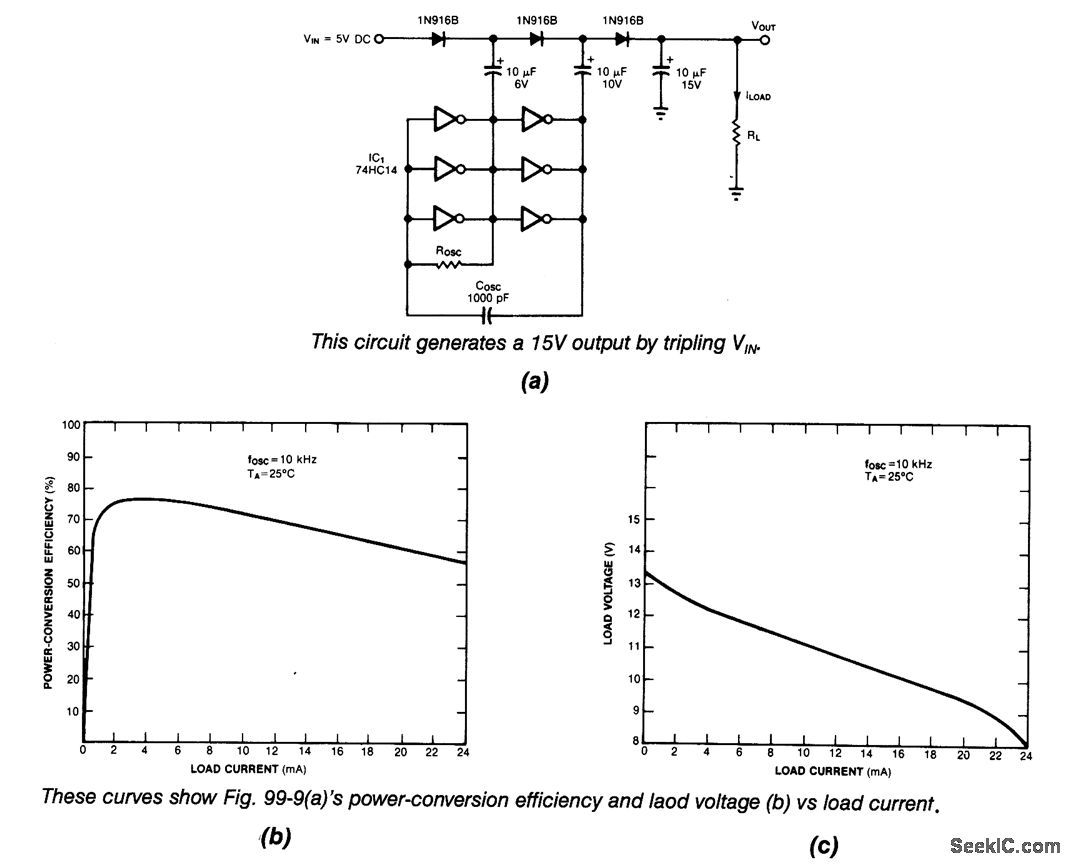

Using a 74HC14 operating at 350 kHz，this voltage tripler delivers approximately 12 V from a 5-V Supply.
