LOW_CAPACITANCE_DRIVER_FOR_RAM

Published:2009/7/5 20:19:00 Author:May | From:SeekIC

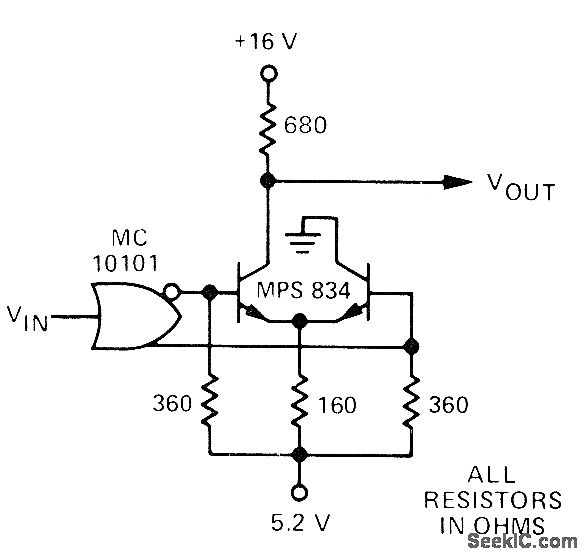

Suitable for data input lines of memory system operating from 16-V supply with memory input logic swing of 16 V. Used with Motorola 1103 dynamic RAM for which transition times of data input signals should be 20 ns to give maximum memory speed. Suitable for maximum capacitances per line as high as 20 pF.-D. Brunner, A MECL 10,000 Main Frame Memory System Employing Dynamic MOS RAMs, Motorola, Phoenix, AZ, 1975, AN-583, p 13.
