LOGIC_LEVEL_SHIFTER

Published:2009/7/16 1:30:00 Author:Jessie | From:SeekIC

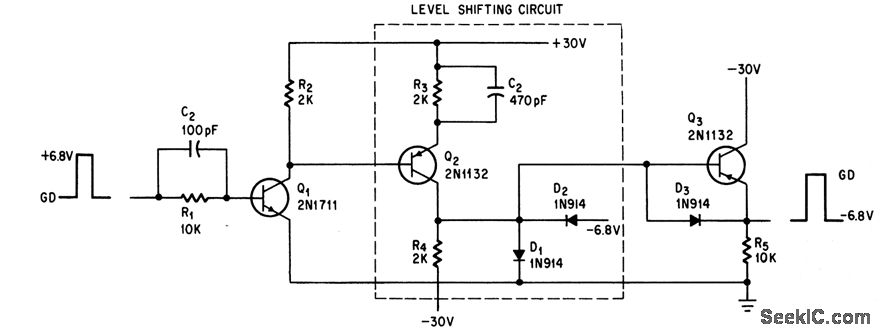

Common-emitter circuit of Q2 shifts logic level from +6.8 v to -6.8 v, with rise and fall limes of 60 nsec.Q3 is buffer.-G. Marosi, High-Speed Level Shifter, Electronics, 39:5, p 105.
