LOGIC_LEVEL_CONVERTER

Published:2009/7/13 6:10:00 Author:May | From:SeekIC

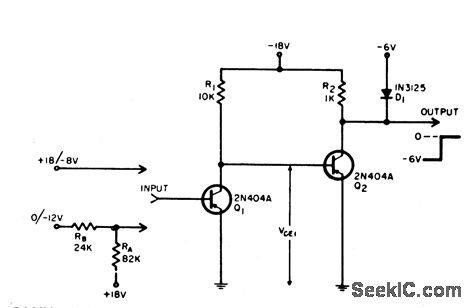

Converts from +18/-8V logic levels of some frequency converters and other digital test equipment to commonly used 0/-6V logic levels of datalogging system.-C. M. Jackson, Logic-Level Converter, EEE, 12:9, p61.
