LOGIC_CONTROLLED_RAMP_RATE

Published:2009/7/13 6:10:00 Author:May | From:SeekIC

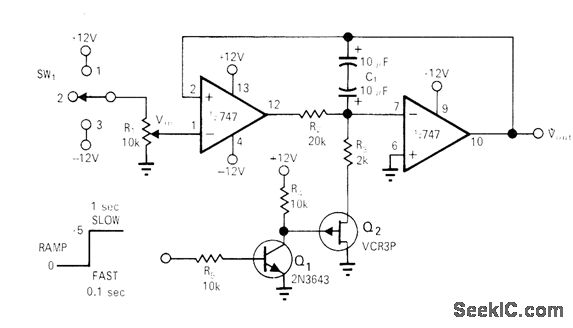

Bidirectional linear ramp generator uses FET switch to slow ramp. With FET off, fast ramp has duration of 100 ms. With FET on, slow ramp is 1 s.-R.W. Currell, Linear Bidirectional Ramp Generator, EDN|EEE Magazine, Nov. 1, 1971, p 50-51.
