LOAD_CURRENT_DELAY

Published:2009/7/15 3:01:00 Author:Jessie | From:SeekIC

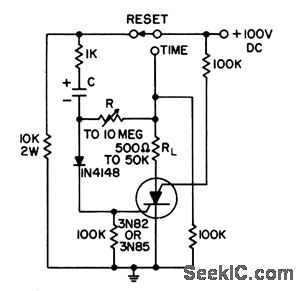

Silicon controlled switch circuit delays start of load current for interval of 0.5 RC after switch is thrown.- Transistor Manual, Seventh Edition, General Electric Co. 1964, p 435.
