LINE_OPERATED_DELAY

Published:2009/7/14 22:23:00 Author:Jessie | From:SeekIC

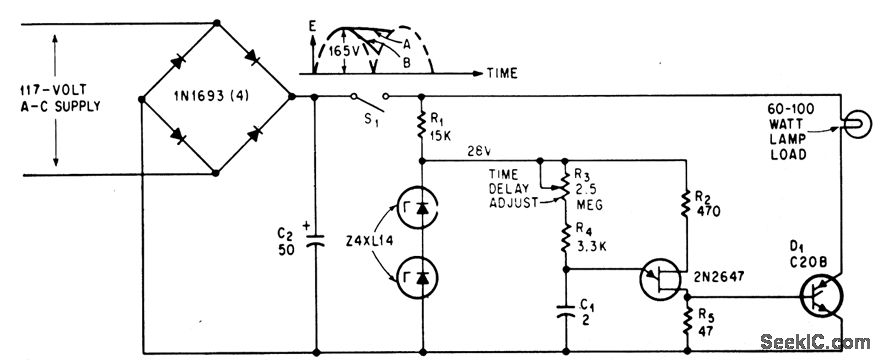

Operates directly from 117V a-c line to provide time delays adjustable from 8 millisec to 5 sec for lamp loads up to 100 w.-D. V. Jones, Quick-0n-The-Trigger Design. Electronics.38:12,p105-110.
