LIGHTS_ON_REMINDER_FOR_AUTOS

Published:2009/7/9 5:06:00 Author:May | From:SeekIC

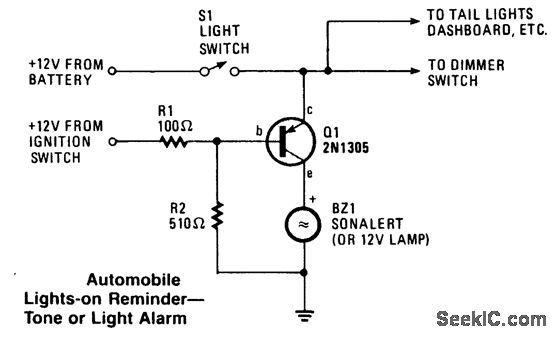

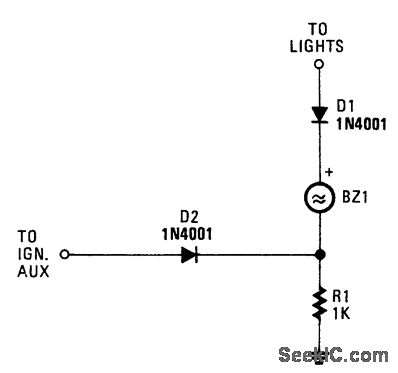

When ignition is off, BZ1 will sound if the head-lights are on. With the ignition on, BZ1 receives no voltage.
