LED digital display mode circuit diagram

Published:2011/5/12 1:42:00 Author:Ecco | Keyword: LED , digital display, mode | From:SeekIC

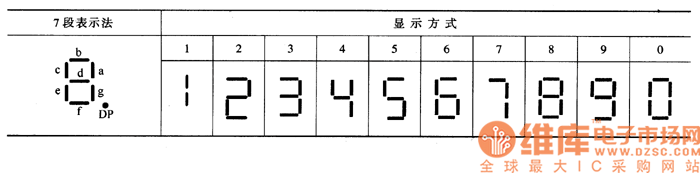

LED digital display mode is shown in Table 28-2. 7 LEDs are made in strip type, they are respectively a, b, c, d, e, f, g and on behalf of digital strokes, selected making strokes emit light, so that you can form ten 0-9 digital code. Another light-emitting diode is a decimal point DP. The modes of LED digital display are shown as the chart.
