LATCH Circuit

Published:2013/3/5 0:23:00 Author:Ecco | Keyword: LATCH | From:SeekIC

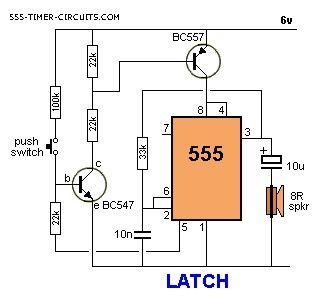

This circuit is a LATCH and remains ACTIVE when the push-button has been pressed for an INSTANT and released.
