LA7910 frequency range decoding IC

Published:2011/7/25 22:27:00 Author:Ecco | Keyword: frequency range decoding | From:SeekIC

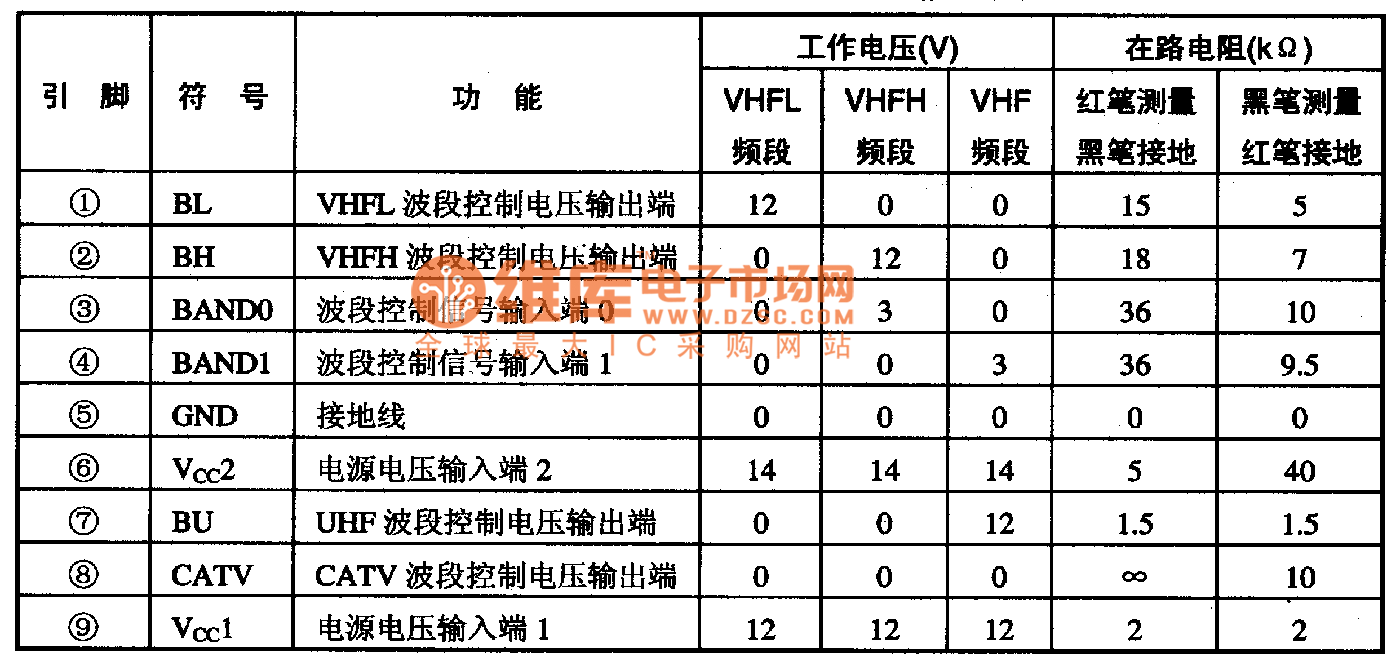

LA7910 frequency range decoding IC produced by Sanyo is widely used in a variety of screen color TV. 1. Features and functions LA7910 IC includes three-way electronic switching circuit, frequency range decoding circuit and so on. 2. pin functions and data LA7910 IC uses a separate 9-pin package, and the integrated circuit pin functions and data are listed in Table 1.
