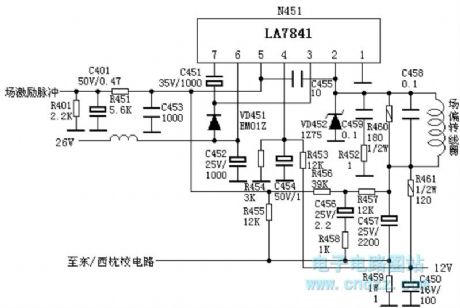

LA7841 Field output circuit

Published:2011/11/3 2:52:00 Author:Ecco | Keyword: Field output | From:SeekIC

Pin 1: 0V-- groundpin 2: 13V--output endpin 3: 25.5 V-- power source pin 4: 2.6V--feedback input endpin 5: 2.6V-- Field drive signal input pin 6: 25.3V-- power source pin 7: 2.1V-- pump power out-port
