LA7838-Field scanning output integrated circuit

Published:2011/7/3 2:16:00 Author:leo | Keyword: LA7838-Field scanning output integrated circuit | From:SeekIC

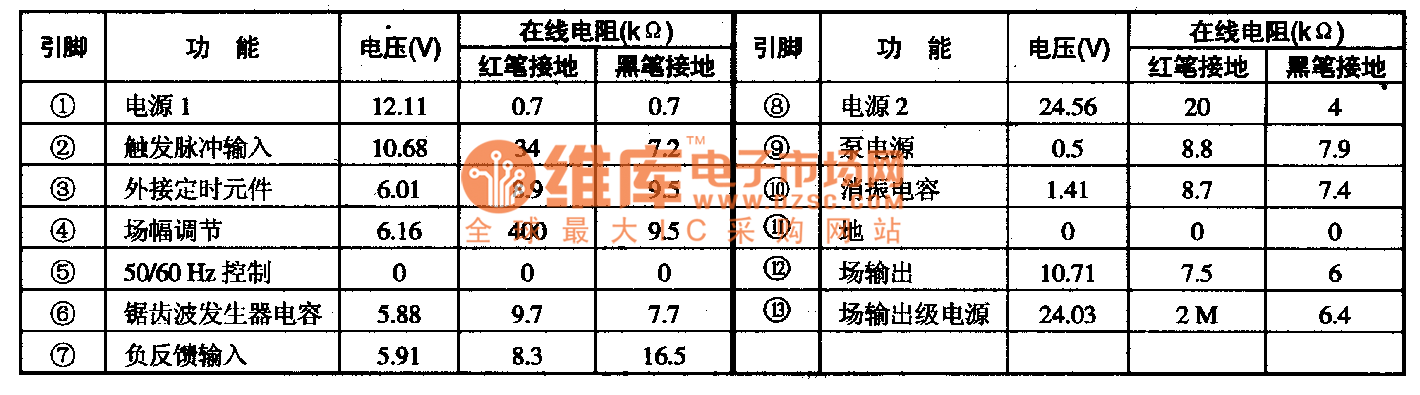

LA7838 is a type of field scanning output integrated circuit made by Sanyo Cooperation in Japan. It is widely used in color television. 1.Function features: The integrated circuit LA7838 contains saw tooth generator circuit, field scanning output circuit, and other related circuits. 2.The integrated circuit LA7838 adopts 13 pin single line packages. The related information is all shown in the picture. Reminder: LA7838 the reducing output capability of the capacitor pin 12 will cause retrace line shows in the screen.
