KA2311 (toy) wireless remote control receiving control regulation circuit

Published:2011/6/1 9:39:00 Author:Lena | Keyword: wireless, remote control, receiving, regulation | From:SeekIC

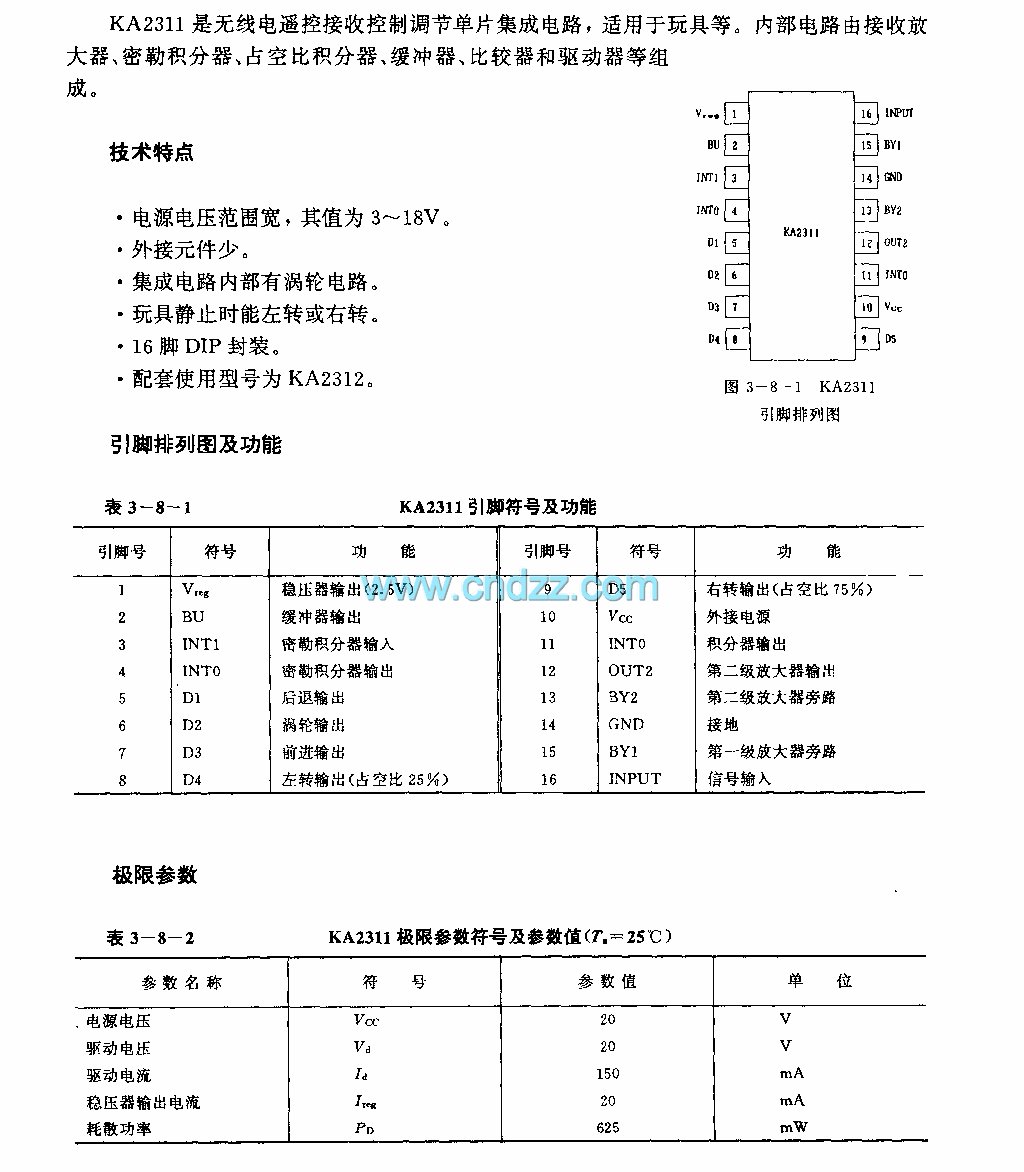

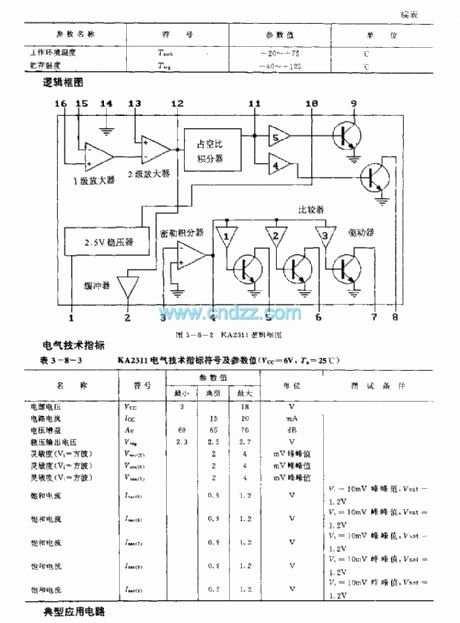

KA2311 is a wireless remote control receiving control regulation single integrated circuit which is applied to toys etc. Internal circuit consists of receiving amplifier, Miller integrator, duty cycle integrator, buffer, comparator and driver etc. Technical characteristicWide power supply range, the value is 3-18V.Few external elements Integrated circuit with turbo circuitWhen the toy stops, it can turn left or right16-pin DIP packageRelated type is KA2312
