Johnson Ring Counter Circuit with

Published:2013/11/19 20:43:00 Author:lynne | Keyword: Johnson Ring Counter | From:SeekIC

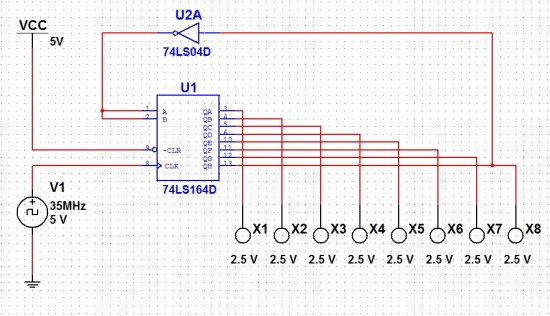

Counters have numerous application in Digital field. There are many types of counters, today we are going to explain about Johnson counter. Johnson counter is also called as Inverse feedback counter or twisted Ring counter. It has 2N states where ‘N’ is the number of flip-flops. So here is how to make a Johnson counter using IC 74LS164. Here are some of the features of IC 74164: Gated (enable/disable) serial inputs Fully buffered clock and serial inputs Asynchronous clear Typical clock frequency 36 MHz Typical power dissipation 80 mW Circuit diagram for Johnson counter using IC 74164 is given below: The components needed for this circuit is: 74164 IC 7404 IC ( Inverter ) 35Mhz clock source 5v supply Indicators to indicate the state In above diagram X1 to X8 are indicators to indicate the current state. The 74LS164 IC have 8 flip-flops built-in. So the number of states will be 2 x 8 = 16 states. Below diagram shows the truth table which have 16 states. As you can see that there is only one bit change from one state to another state. Every bit starting from X1 goes high after one state till X8. After X8 is high the X1 bit will go low ( 0 ). This is because in the circuit the output of X8 is given as the input to the NOT gate 7404 IC. And the output which is inverted is given back as an input to IC 74164. Hence Johnson counter is also called as Inverse feedback counter. If you have any doubt in the circuit please leave a comment we will respond you.
