JK_FLIP_FLOP

Published:2009/7/14 21:26:00 Author:May | From:SeekIC

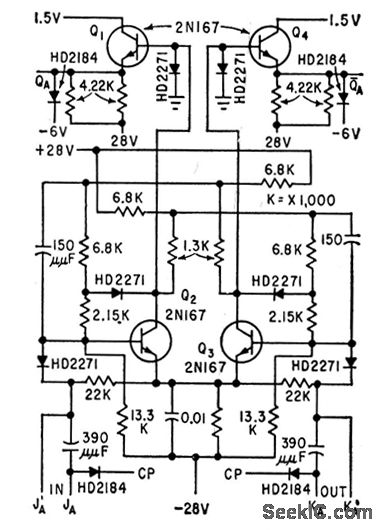

Consists of transistorized Eccles-Jordan switch, with collectors damped with diodes to stabilize operating points. Used to provide current for driving gating circuits of voltage amplifiers for magnetic memory drum.-A. J. Strassman and R. E. Keeter, Clock Track Recorder For Memory Drum, Electronics, 32:41, p 74-76.
