JFET_CURRENT_SINK

Published:2009/7/13 5:01:00 Author:May | From:SeekIC

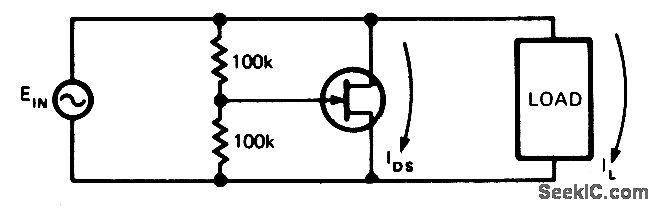

Simple circuit effectively raises load operating point of current-sen-sitive device by shunting current through JFET having nonlinear action. JFET type is not criti-cal. Applications include improvement of thyristor noise performance by diverting current around load. -V. Gregory, FET Current Sinks Raise Operating Points, EDN Magazine, Feb. 20, 1974, p 81.
