Inverter circuit 7

Published:2011/4/13 21:42:00 Author:may | Keyword: Inverter | From:SeekIC

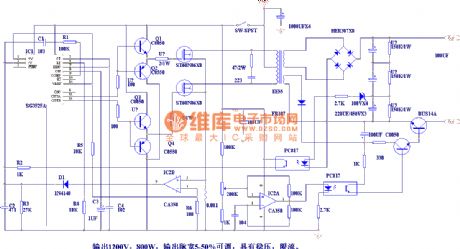

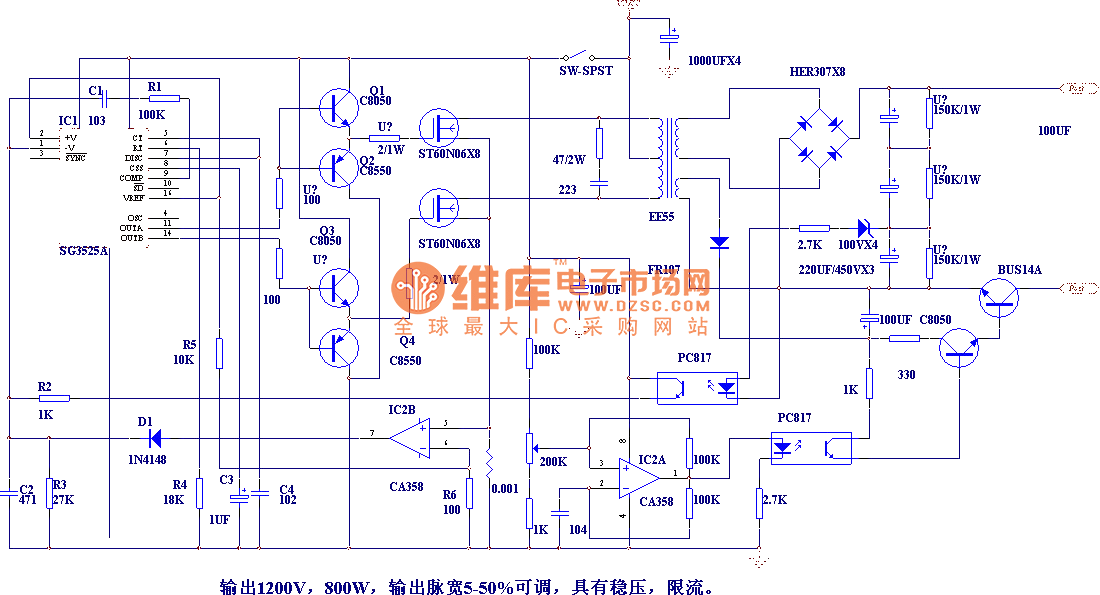

Output 1200V, 800W, output pulse width 5~50% is adjustable. This circuit has the function of voltage regulation and current limiting.
