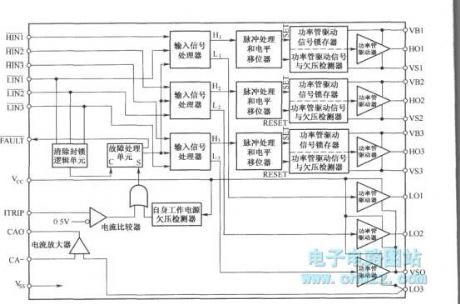

Internal structure diagram of IR2130

Published:2011/4/7 3:58:00 Author:may | Keyword: Internal structure | From:SeekIC

IR2130 is a kind of power MOSFET and IGBT driver with high voltage, high speed. Its working voltage is 10~20V. It separately has five separate high end and low end output channel.
