Interface circuit of BCL to LED

Published:2011/3/22 1:22:00 Author:muriel | Keyword: Interface circuit , BCL to LED | From:SeekIC

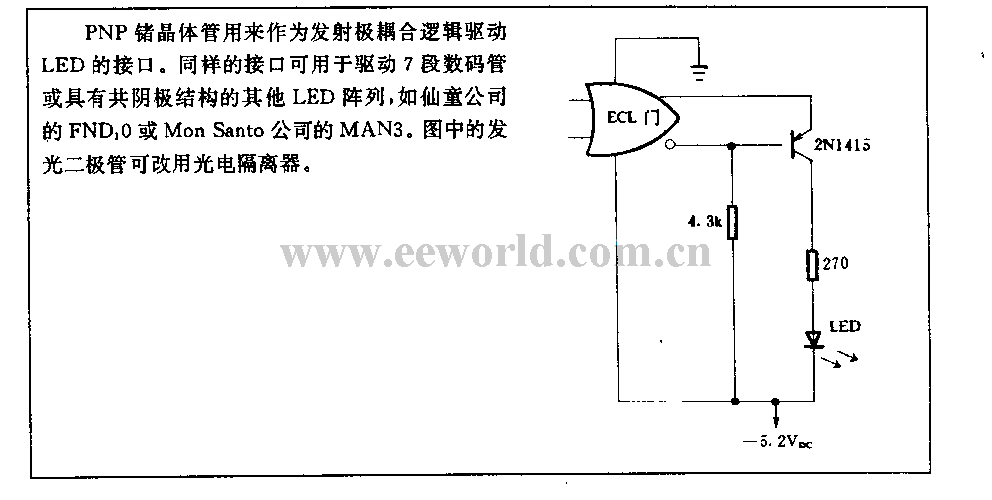

PNP germanium transistors used as a interface of an emitter coupled logic drive LED. The same interface can be used to drive 7-segment Nixie tubeor other LED arrays with common cathode structure, such as Fairchild's FND, 0 or Mon santo company's MAN3. Light-emitting diodes in the figure can switch to optical isolators.
