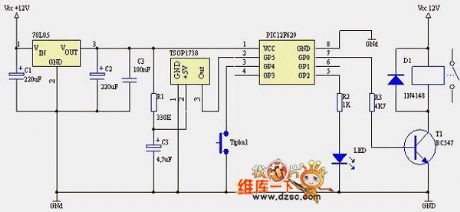

Infrared remote control switch circuit diagram

Published:2011/6/28 2:53:00 Author:Ecco | Keyword: Infrared , remote control , switch | From:SeekIC

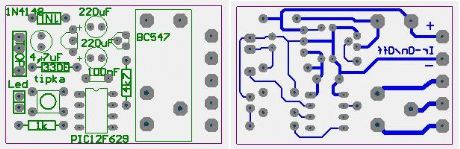

Making such a remote control switch is very simple, even beginners can do it well, because this circuit is too simple, and it only requires a dozen components. The SCM is used as the processing chip, so the circuit is simple. The SCM uses PIC12F629, and the integrated remote control receiver uses TSOP1738, of course, if you do not find this type of receiver, you can use an alternative model, and the relay chooses 12V relay.
