Infra Red Extender Mark 4

Published:2012/11/21 1:54:00 Author:muriel | Keyword: Infra, Red, Extender | From:SeekIC

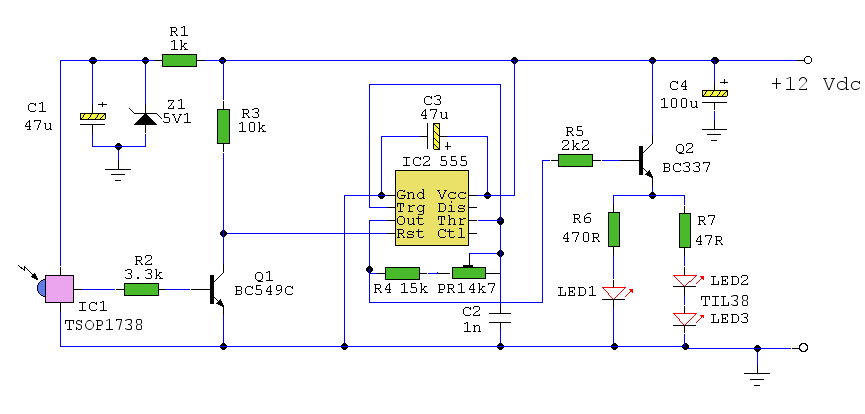

An Infra Red wired Repeater circuit to control appliances from a remote location.
