ISOLATING_DIODE_MONO_MVBR

Published:2009/7/15 2:46:00 Author:Jessie | From:SeekIC

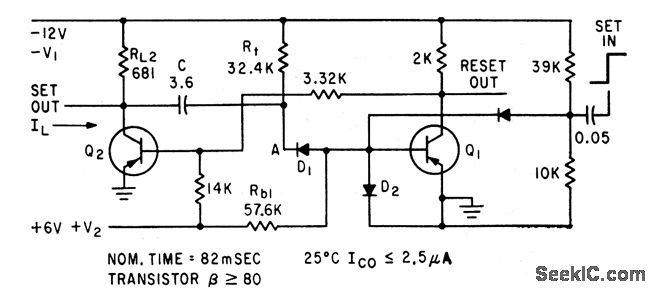

Addition of diode D1 to conventional delay circuit reduces timing variations otherwise encountered in production runs. Supply voltage change of 10% causes timing change of only 1%-D. E. Haselwood. Monostable Multivibrators with Stable Delay Times. Electronics.34:49,p64-65
