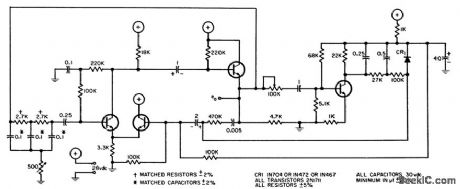

ISOLATED_INTEGRATOR_IN_100_CPS_PHASESHIFT_OSCILLATOR

Published:2009/7/16 4:20:00 Author:Jessie | From:SeekIC

Frequency can be adjusted over limited range with 500-ohm rheostat, which can easily be replaced with photocell or other resistive transducer to give frequency that varies with light intensity, temperature, voltage, current, or other parameter.-B. M. Van Emden, The Isolated-Integrator Network, EEE, 12:5, p 55-57.
