INVERTER_AND_PULSE_STRETCHER

Published:2009/7/14 2:41:00 Author:May | From:SeekIC

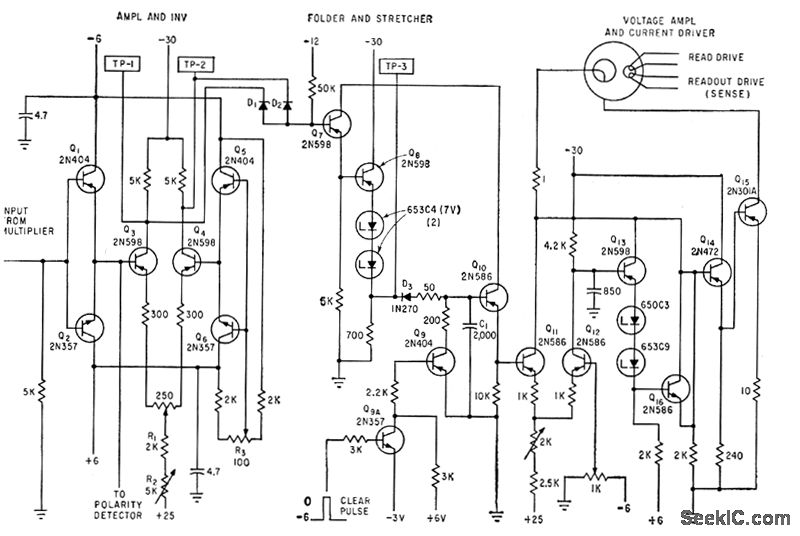

Circuit likes sampled output of multiplexer and provides current required for driving transfluxor in analog-digital converter that produces six-bit binary Gray code.-N. Aron and C. Granger, Analog-To-Digital Converter Uses Transfluxors, Electronics, 35:20,p 62-66.
