INTEGRATOR_OF_SOLID_STATE_PHANTASTRON

Published:2009/7/15 3:38:00 Author:Jessie | From:SeekIC

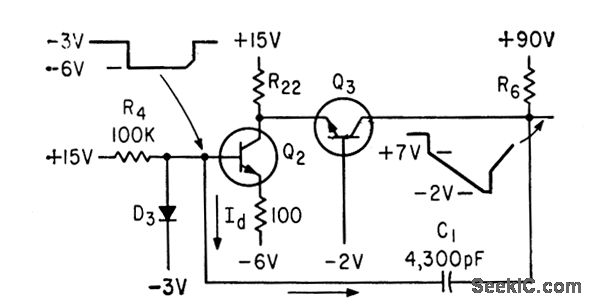

Q2 and Q3 provide open-loop gain, while R4 and C1 are feedback elements.-S. R. Parris and D. A Staar, Highly Accurate Phantastron Delay Circuit, Electronics, 33:43, p 72-74.
