INTEGRATOR_AND_BINARY_TRIGGER_FOR_SHMOO_PLOTTER

Published:2009/7/16 4:02:00 Author:Jessie | From:SeekIC

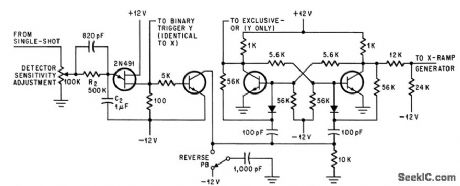

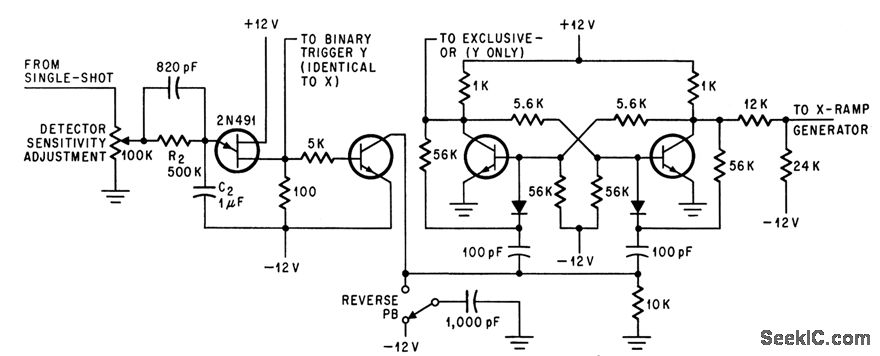

Integrator stage with R2-C2 measures duty cycle of single-shot mvbr used in showing computer memory perform once under marginal drive currents. Binary triggers control direction of ramp generators und increase or decrease memory drive current. Npn transistors are 2N706 and diodes are 1N921.-J. E. Gersbach, The Great Shmoo Plot: Testing Memories Automatically, Electronics, 39:15, p 127-134.
