INSTANT_ULTIMATE_VALUE

Published:2009/7/14 22:51:00 Author:Jessie | From:SeekIC

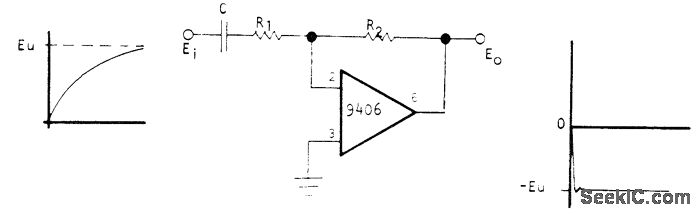

Circuit instantly computes ultimate value of logarithmically in-creasing input signal Ei y performing augmented differentiation that gives step function equal to ultimate value EU, Uses Optical Electronics 9406 opamp. Circuit values are computed from EU = EO = -R2EjR1 – R2Cdej/dt.- Derivative Circuit Indicates Ultimate Value Instantly, Optical Electronics, Tucson, AZ, Application Tip 10179.
