IMPROVED_TRIGGERING_OF_MONO

Published:2009/7/16 13:06:00 Author:Jessie | From:SeekIC

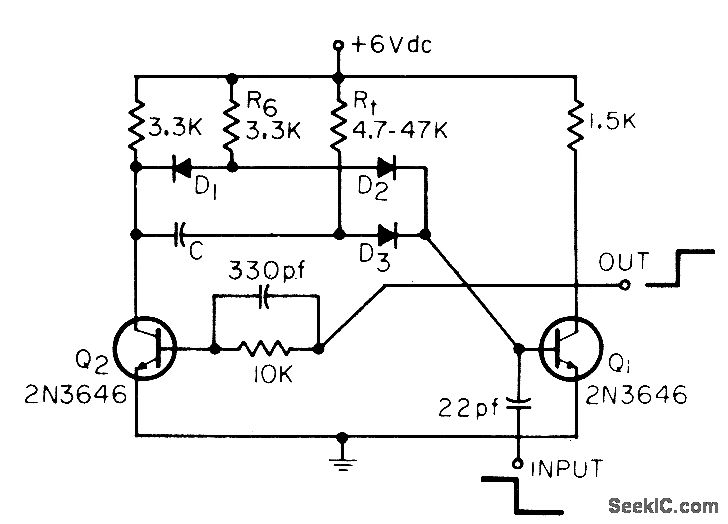

Addition of three diodes and one resistor to conventional monstable mvbr permits increasing value of timing resistor Rt without making circuit susceptible to false triggering.-H. Cohen, Eliminating False Triggering in Monostable Multis, EEE, 14:8, p 168.
