IMPROVED_BAXANDALLCONT_ROL

Published:2009/6/29 23:57:00 Author:May | From:SeekIC

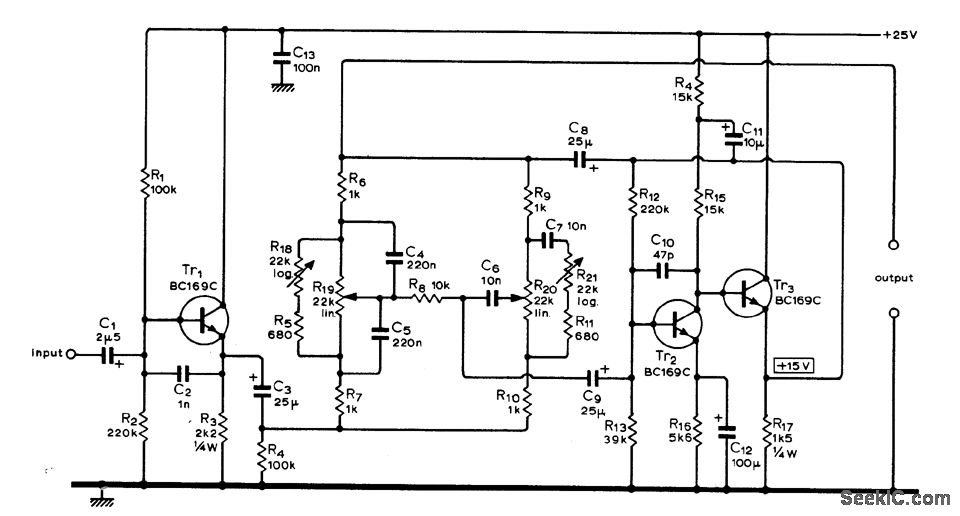

Uses separate effect″controls for bass and treble tolimit maxlmum degree of boost and cut obtainable from bass and treble controls，R18 controls effect for bass and R21 for treble. Circuit has unity gain with controls set flat. Article gives response curves and describes operation of cir cult in detail-M，V，Thomas、Baxandall ToneControl Revisited、Wireless World， Sept，1974,p341-343.
