High_Q_notch_filter

Published:2009/7/25 0:44:00 Author:Jessie | From:SeekIC

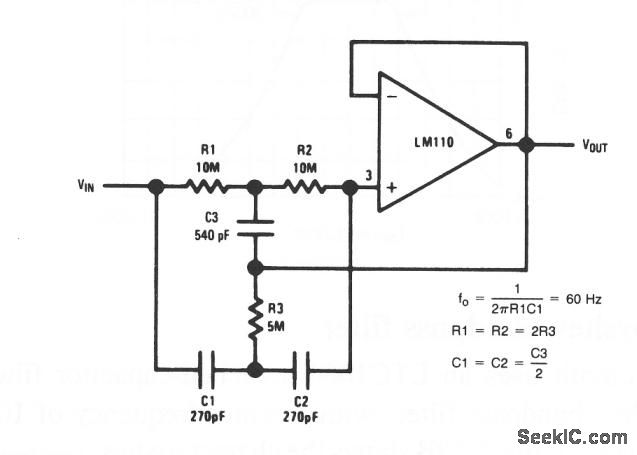

This circuit uses an LM110 connected to form a basic high-Q notch filter. The frequency range is determined by the values of R1 and C1, as shown by the equation. National Semiconductor, Linear Applications Handbook, 1991, p. 1202.
