Hand_held_line_powered_RS_232_C_transceiver

Published:2009/7/24 12:34:00 Author:Jessie | From:SeekIC

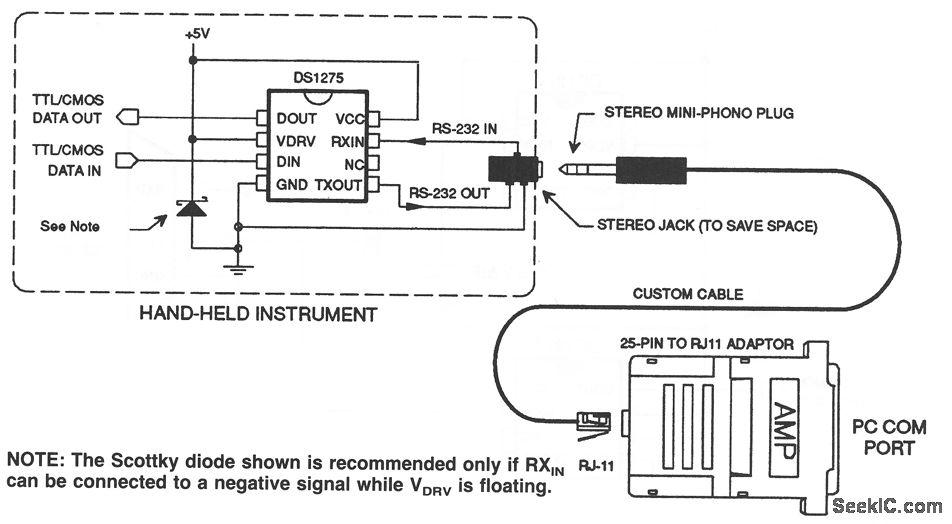

This circuit shows a DS1275 as a hand-held IRS-232-C transceiver using a stereo mini-jack and 25-pin to RK11 adaptor. Notice that the DS1275 accommodates both TTL and CMOS data. Dallas Semiconductors, Product Data Book, 1992/1993, p. 10-113.
