Half Bridge DC/DC Converter Circuit

Published:2011/6/24 1:36:00 Author:Michel | Keyword: Half Bridge, DC/DC, Converter Circuit | From:SeekIC

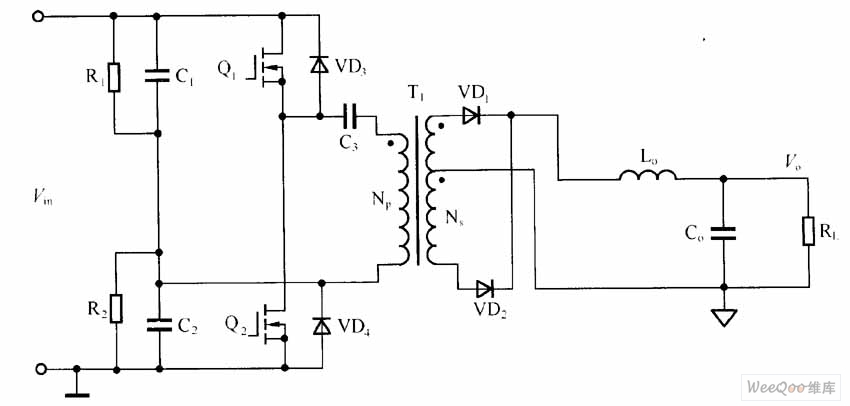

The half bridge DC/DC converter circuit is shown as above.Among them,transformer acts as isolation and transfering energy. Np winding bears half input voltage and vice edge winding voltage make VD1 conducts when switch tube Q1 conducts and vice versa.In the output, VD1, VD2 Lo and Co constitutes rectifier filter circuit.
