HT16500 audio integrated chip circuit diagram

Published:2011/8/4 1:39:00 Author:Ecco | Keyword: audio integrated chip | From:SeekIC

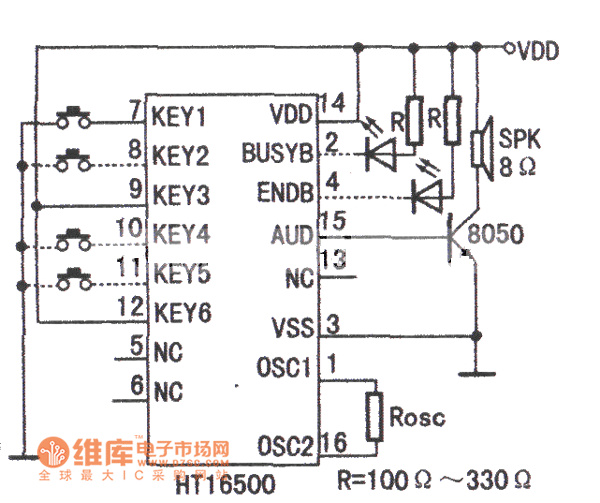

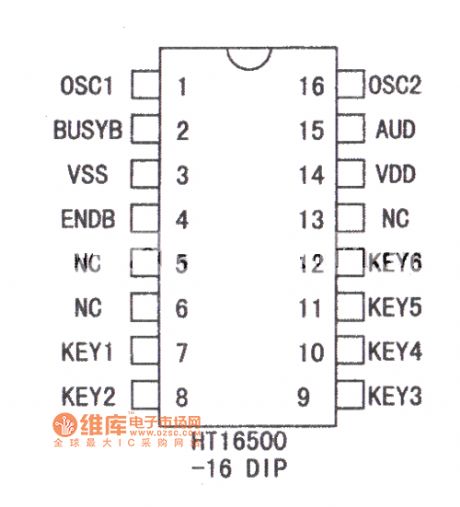

Theplastic DIP pin diagram and the typical application circuit of HT16500audio integrated circuit are as below:
