HIGH_VOLTAGE_GAIN

Published:2009/7/10 5:33:00 Author:May | From:SeekIC

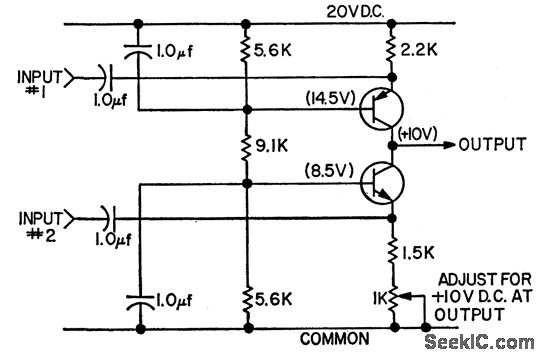

Provides gain of 3,500 into 10-meg load, by operating transistor in common-base configuration and using constant-current source in collector drcuit, Circuit is balanced, so either transistor can operctie as gain stage while other serves as current source. Feedback overcomes problem of critial d-c bias.-A. J. Adler, High-Gain Ampliner, EEE, 11:8, p 31.
