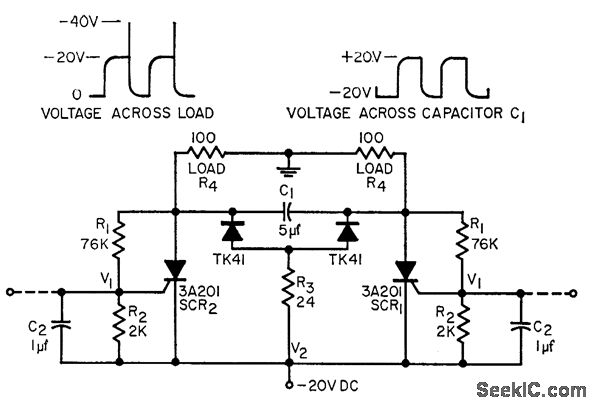

Simple astable circuit design eliminates external trigger, minimizing number of components. Voltage dividers R1 and R2 provide gate voltage for scr's. Both dividers start charging associated capacitors C2 until one scr breaks down, initiating oscillation. Used in converter power supplies.-W. B. McCartney and E. O. Uhrig, Actable High Power Multivibrator, EEE, 10:12, p 30-31.
