GUITAR_TREBLE_BOOST

Published:2009/7/7 5:02:00 Author:May | From:SeekIC

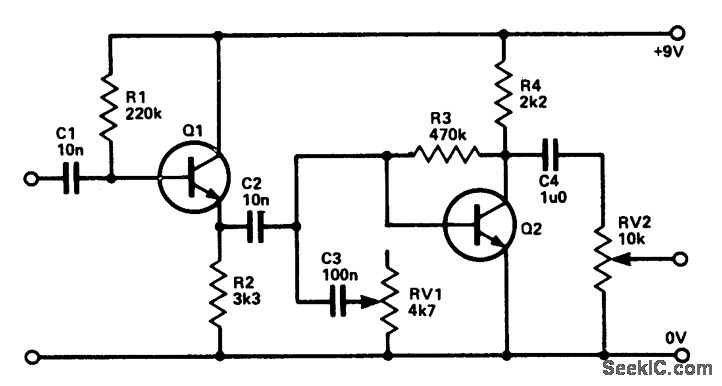

Q1 is connected as an emitter follower in order to present a high input impedance to the euitar. C2, being a relatively low capacitance, cuts out most of the bass, and C3 with RV1 acts as a simple tone control to cut the treble, and hence the amount of treble boost can be altered.Q2 is a simple preamp to recover signal losses in C2, C3, and RV1.
