GROUNDED_LINE_CABLE_DRIVER

Published:2009/7/13 3:14:00 Author:May | From:SeekIC

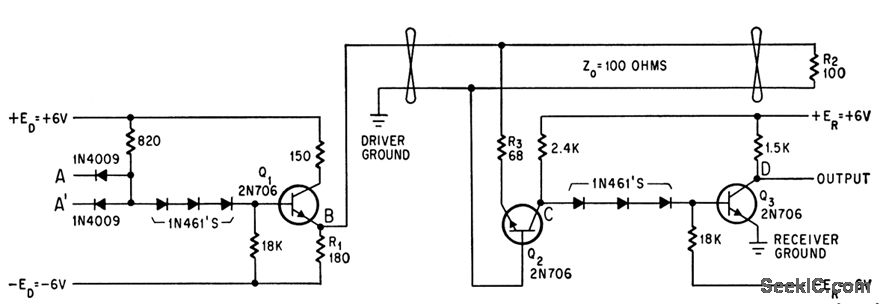

Twisted 100 ohm d-c coupled tranmission line solves ground-differential problem between driving and receiving subsystems up to 120 feet apart, while eliminating costly transformer coupling. Holding line excursion to 1.5V minimizes capacitive crosstalk. Up to four receivers can be used on one line.-R. C.Garavalia.Transimission lines Couple Multiple-Driver Receivers.Electronics.39:16,p121-122.
