GENERATES_PREDETERMINED_NUMBER_OF_PULSES

Published:2009/7/24 2:31:00 Author:Jessie | From:SeekIC

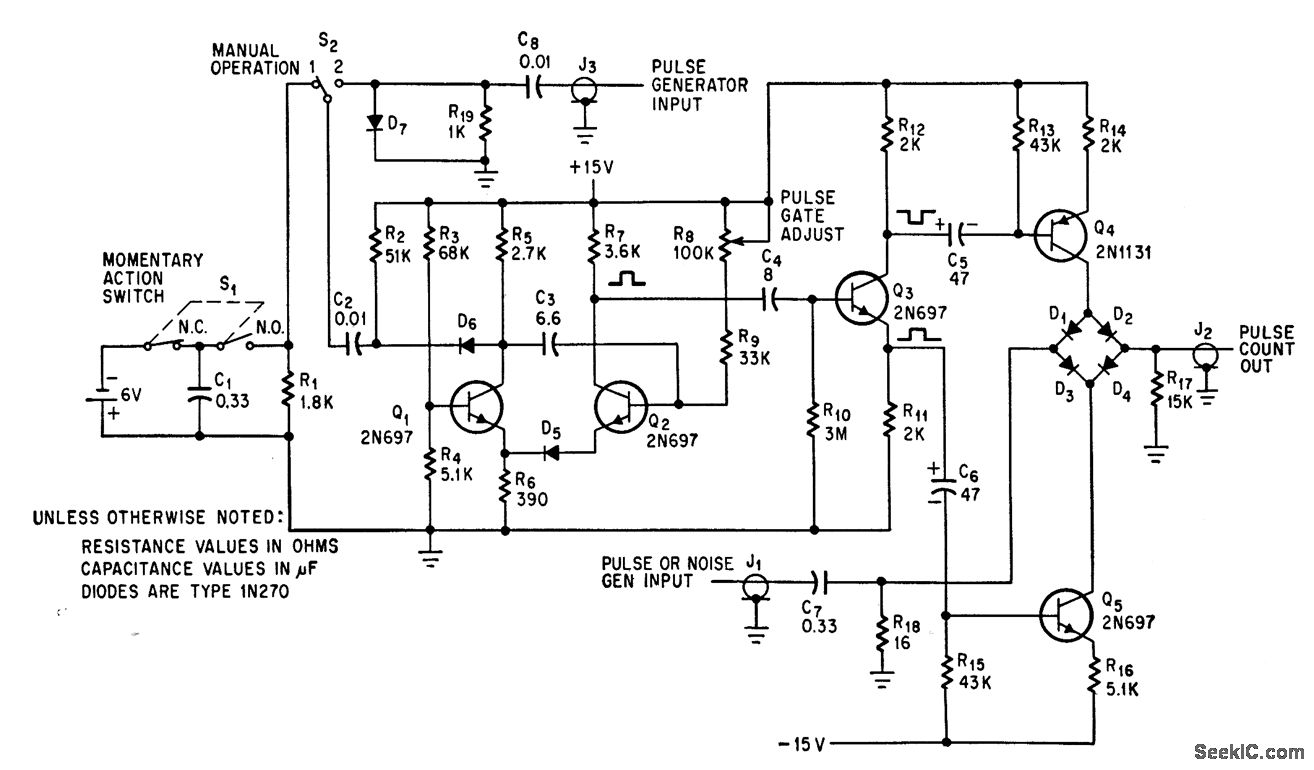

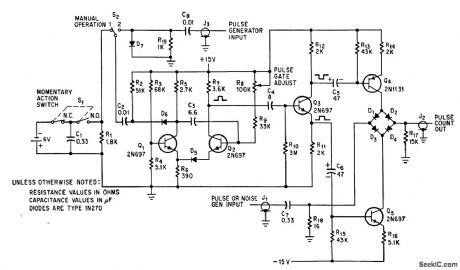

Provides group of pulses with fixed prr, at touch of switch S1, to simulate target returns of various radars. Number of output pulses depends on duration of gate, set by R8.-L. Turf, Simulator Circuit Generates Video or Noise Pulses, Electronics, 39:9, p 78-79.
