GENERAL_PURPOSE_UP_TO_10_MHz

Published:2009/7/2 7:09:00 Author:May | From:SeekIC

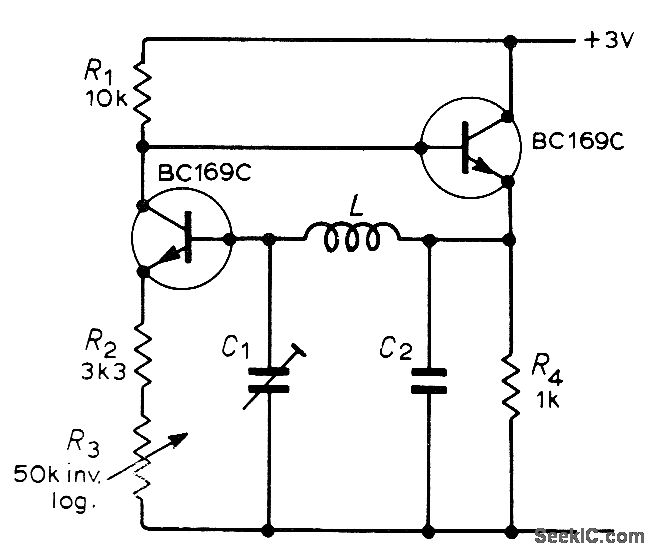

Variation of Colpitts oscillator uses negative feedback at all frequencies at which LC network does not provide phase inversion and voltage step-up.Choose values for coil and capacitors to give frequency desired. R3 serves as regeneration control and for changing waveform of output.-G. W. Short, Good-Tempered LC Oscillator, Wire-less World, Feb. 1973, p 84.
