GENERAL_PURPOSE_RF_DETECTOR

Published:2009/7/3 3:40:00 Author:May | From:SeekIC

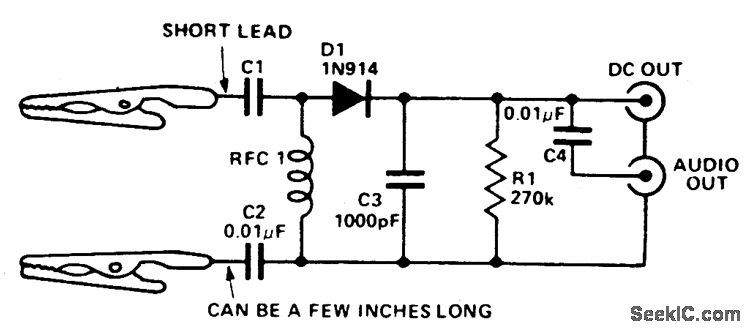

Circuit NotesThis circuit provides a dc output to a meter and an audio output (if necessary) for checking transmitters or modulated signals. It can be used also as a field strength meter or transmitter monitor.
